Medix T13 v4

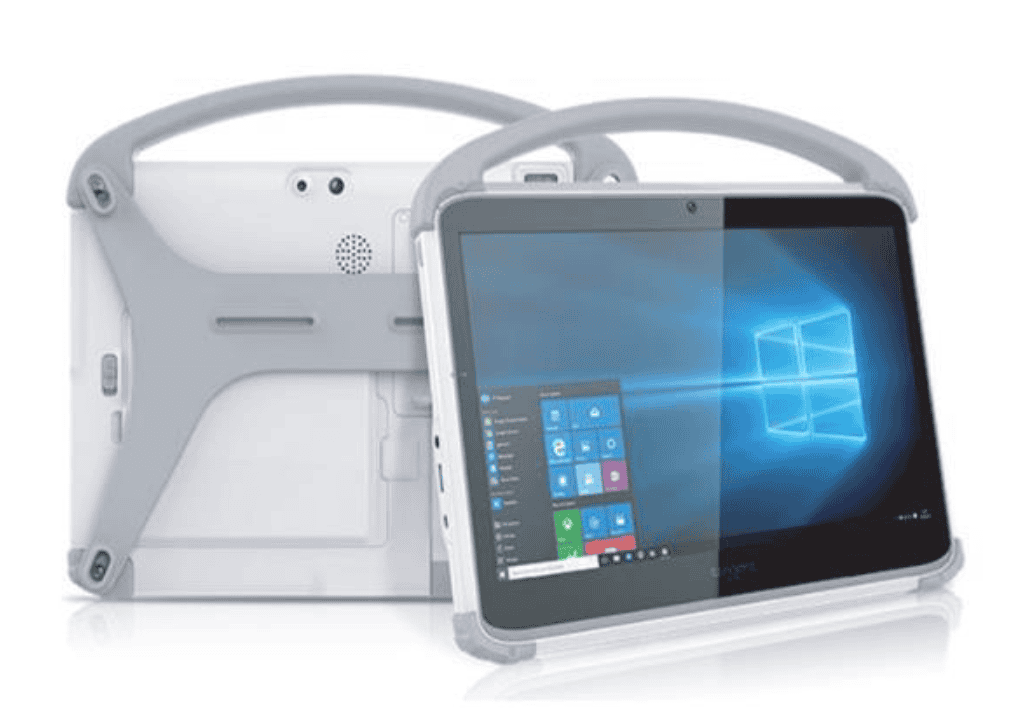

Medix T13 v4 Medical Grade Tablet

The Tangent Medix T13 v4 is a 13” Tablet featuring Intel Quad-Core 11th Gen CPU, hospital grade antimicrobial enclosure, ABS/Magnesium chassis, hot-swappable battery, and optional carrying handle. Other optional features include 1D/2D Barcode Scanner and RFID Reader w/SSO or Keystroke Support.

Contact Us

Product Details

SPECIFICATIONS

Display
LCD Size: 13.3″ (16:9)
Max. Resolution: 1920 x 1080 (WUXGA)
Brightness (cd/m2): 300 cd/m2
Contrast Ratio: 800:1
LCD Color: 262,144K
Pixel Pitch (mm): 0.153mm (H/V)
Viewing Angle (H-V): 170″ x 170″
Anti-Glare Treatment: Yes

Touch
Touch Screen: Projected capacitive w/ 10 points, Digital Pen (Optional)
Touch Controller: EETI HID Digitizer

System
Processor: Intel Core i5-1135G7, Quad-Core, 8MB Cache, up to 4.2GHz, Intel Core i7-1165G7, Quad-Core, 12MB Cache, up to 4.7Ghz
System Chipset: Tiger Lake R SoC Integrated
Graphics Controller: Intel Iris Xe Graphics
LAN Chipset 1 x GbE: Intel i219-V
Audio: Realtek ALC256
System Memory: Up to 32GB DDR4 3200MHz (1 x SO-DIMM)
BIOS: Insyde 64Mbit, NIST compliant BIOS Optional
TPM: TPM 2.0 (fTPM)

Storage
NVMe: 1 x M.2 2280 “M” Key for up to 2TB storage

Expansion
SIM Socket: 1 x SIM
M.2: 1 x M.2 2280 “M key” for NVMe SSD,1 x M.2 2230 “A” & “E” Key for WiFi,1 x M.2 2242 “B” Key for 4G LTE Modem

Other Features
Cooling Method: Fanless
Internal Speaker: 1x 1W Speaker
WebCam: 1 x 5Mpixel Camera (Front, Optional), 1 x 8Mpixel Camera (Rear, Optional)

Physical
Enclosure Materials: ABS plastic + Magnesium/Aluminum Alloy
Anti-microbial: Yes
Dimension (WxHxD): 13.2″ x 10.6″ x 0.8″ (335 x 270 x 21.0 mm) with handle, 13.2″ x 8.94″ x 0.8″ (335 x 227 x 21.0 mm) without the handle
Weight: 3.97lb. (1.8Kg)
Mounting: Optional Docks

I/O
Video: 1 x HDMI (right side)
USB: 1 x USB 3.0 (left side), 2 x USB 2.0 (right side)
LAN: 1 x GbE RJ45 (right side)
WLAN: 802.11 Ax + BT 5.2 LE (Intel)
Audio: 1 x line-out (left side)
Others: 1 x power switch, 3 x programmable buttons
Options: 1D/2D barcode scanner (optional), Dual Band RFID reader w/SSO or Keystroke support (optional)

Power
Power Mode: AC Adapter
Power Input Voltage: 19 VDC
Power Connector: Barrel Plug
Battery: 1 x Li-ion 11.4VDC @ 5400mAh – 61.5W (hot-swappable),1 x Li-ion 11.4VDC @ 8000mAh – 91.2W (Optional)
Power Adapter: External Power Adapter, 19VDC @3.42A

Environment
Operating Temp: 32°F – 104°F (0°C – 40°C)
Storage Temp: -67°F to 158°F (-55°C to 70°C)
Relative Humidity: 0% to 90% non-condensing
Certification: FCC, CE/CB, UKCA, ANSI/AAMI ES60601-1

Accessories
Accessories: Desktop charging cradle w/ USB & LAN, Vehicle mount cradle w/ VESA, Shoulder strap, 6 x bay battery charger

Warranty
Warranty: 1-Year Standard

Highlights

  • Intel Quad-Core 11th Gen Processor
  • Medical Grade, Antimicrobial Enclosure
  • Magnesium Chassis
  • Hot-Swappable Battery
  • Anti-Reflective Coating
  • Optional Carrying Handle

Additional Resources
